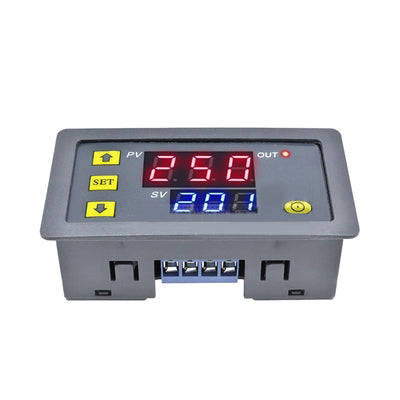

DIGITAL TIMER 220VAC 1500W PANEL MOUNT

  • R 260.00
Tax included. Shipping calculated at checkout.

Only 4 left!

Specifications:
Model: Time Delay Relay
Timing range: 0-999s,0-999m,0-999h
Relay: 1500W power
System Power: 220VAC
LED Display: Red + Blue Dual Display
Size: 79 x 26 x 43mm
Hole size: 72 x 40mm

Instructions:
1. After setting the data, you must wait 6 seconds, 6s post modules automatically save memory set data.
2. Press SET key once to enter the time setting mode, the red LED flashes, press the key to increase or decrease the setting time T1.
3. After setting time T1, short press the SET key again, the green LED flashes, and the time is set by pressing the key Time T2, T2 time setting is completed, press SET key again, the system will automatically save the memory setting time or wait for 6s, 6s module will automatically save the data memory.
4. Long press SET, enter parameter setting mode. There are two sets of parameters for the user to select P0, P1. Short press SET in the current mode to switch between P0 and P1.
5. In P0 parameter can be set by pressing the key to adjust their own timing mode. In the P1 parameter can be set by adding and subtracting keys work mode.

P0--0:T1 Timing mode is second.
P0--1: T1 timing mode is minutes.
P0--2:T1 Timing Time mode is hour.
P1--0: Delay T1 time, relay pull(T1 timer)
P1--1: Relay release after T1 time delay (T1 timer)
P1--2: Delay T1 time, relay pull(T1 timer), and then relay release after T2 time delay(T2 timing),then it is finished.
P1--3: Relay release after T1 time delay(T1 timer), then delay T2 time, relay pull(T2 timing),then it is finished.
P1--4: Delay T1 time, relay pull(T1 timer), and then relay release after T2 time delay(T2 timer), cycling.
P1--5: Relay release after T1 time delay(T1 timer), then delay T2 time, relay pull(T2 timer), cycling.

Package Included:
1 x T3230 220VAC Timer Cycling Module Digital Display Time Delay Relay Switch LED.
Instructions/schematic are NOT included.
